LZZBJ9-10
REACHEE

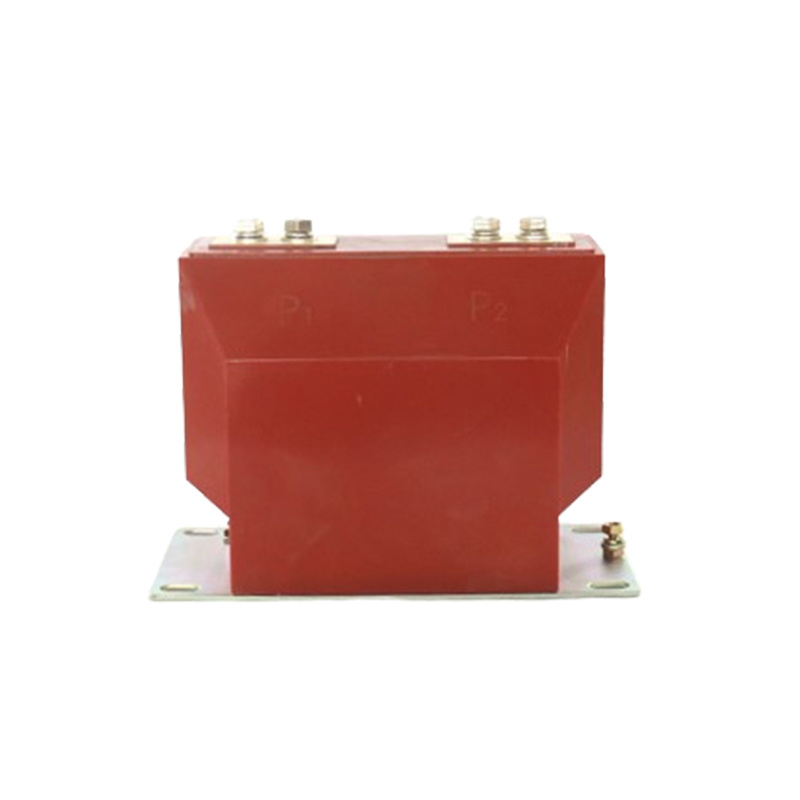

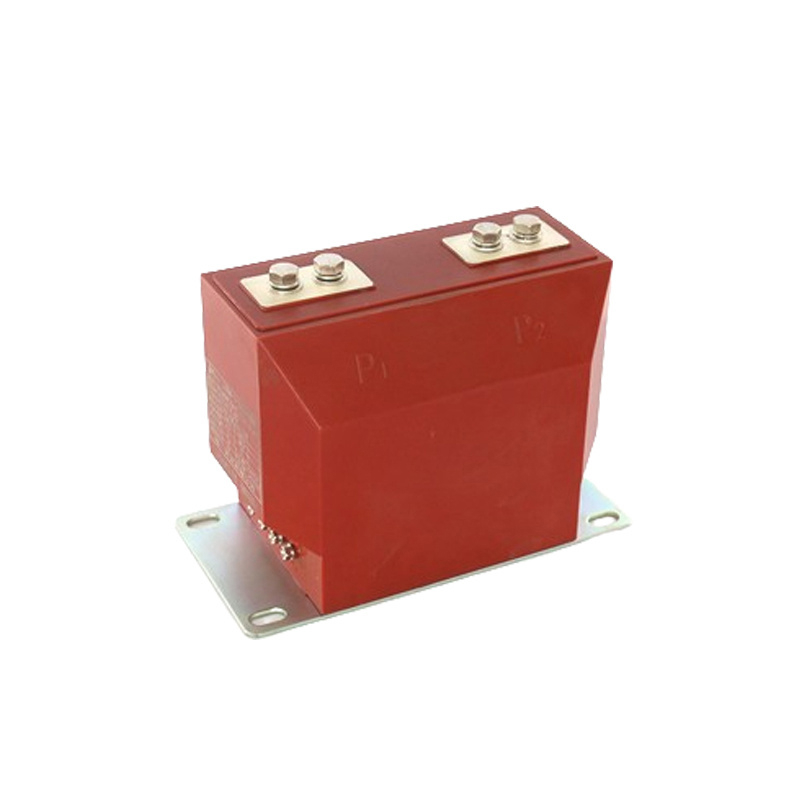

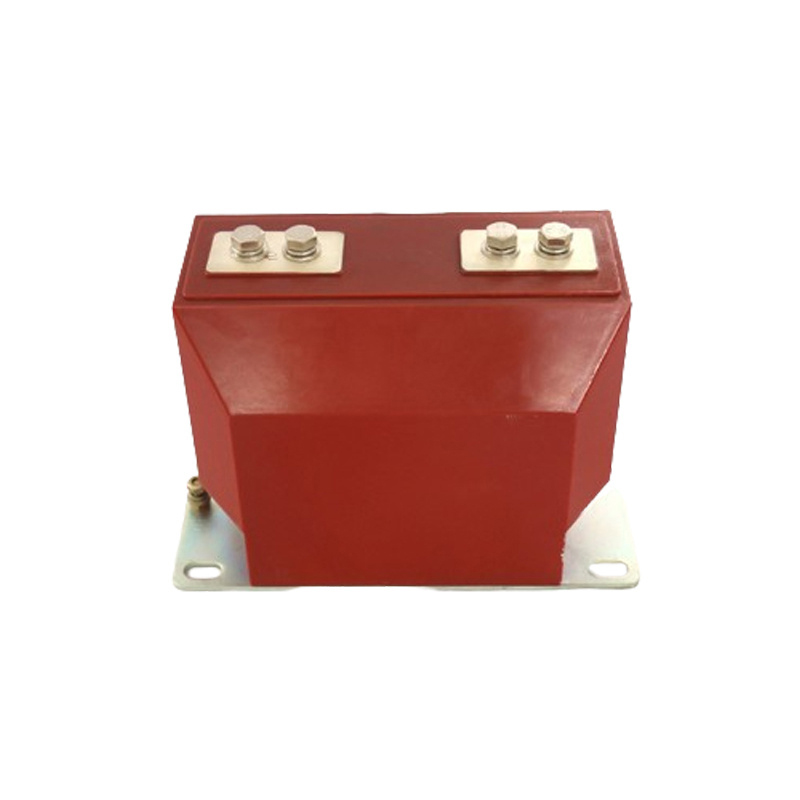

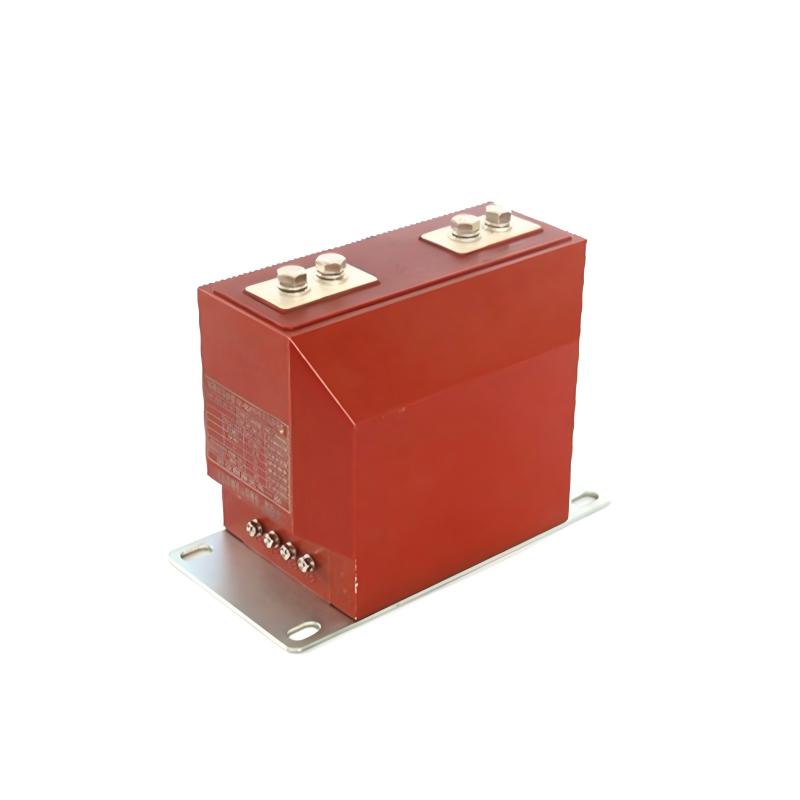

LZZBJ9-10A type current transformer is of epoxy resin cast, indoor post type.
It is used for protection and energy metering in power systems with a rated frequency of 50Hz and rated voltage of 10kV and below. The LZZBJ9-10A can be installed in center-mounted switchgear and other types of switchgear.
This current transformer features a post-type structure with fully enclosed epoxy resin casting, providing excellent resistance to pollution and humidity, making it also suitable for tropical regions.
The transformer requires no special maintenance; only regular cleaning of surface dirt is needed.
Thanks to its fully enclosed epoxy resin casting, it features compact size and light weight. It can be installed at any location and in any mounting orientation.
Product Advantage |
1. The current transformer features a fully enclosed structure, with epoxy resin as the primary insulation material.
2. Its core is made of crystallized alloy or high-quality silicon steel sheet, wound into an annular shape, and the secondary winding is evenly wound around the core.
3. The primary conductor is wrapped with insulating tape to prevent short circuits between conductors.
4. Grounding bolts and mounting holes are provided at the bottom of the product for convenient installation.
Technical Parameters |
Type | LZZBJ9-10AG、A1G | LZZBJ9-10A2G | ||||||||||||
Specification | Accuracy class | Rated secondary | 1second | Dynamic | Accuracy dass | Rated secondary | 1 second | Dynamic | ||||||
0.2 | 0.5 | 10P10 | 10P15 | 0.2 | 0.5 | 10P10 | 10P15 | |||||||
5 | 0.2S/10P | 10 | 10 | 15 | 10 | 2 | 5 | 0.2S/10P | 10 | 20 | 20 | 20 | 0.5 | 1.25 |
10 | 4 | 10 | 1 | 2.5 | ||||||||||
15 | 6 | 15 | 1.5 | 3.75 | ||||||||||
20 | 8 | 20 | 2 | 5 | ||||||||||
30 | 12 | 30 | 3 | 7.5 | ||||||||||
40 | 16 | 40 | 4 | 10 | ||||||||||
50 | 20 | 50 | 5 | 12.5 | ||||||||||
75 | 32 | 90 | 7.5 | 18.75 | ||||||||||
100 | 45 | 112.5 | 21 | 52.5 | ||||||||||
150 | 31.5 | 80 | ||||||||||||
200 | ||||||||||||||
300 | 15 | 45 | 112.5 | |||||||||||
400 | ||||||||||||||
500 | 15 | 63 | 130 | |||||||||||
600 | 63 | 130 | ||||||||||||
800 | 20 | |||||||||||||
1000 | 30 | 80 | 160 | |||||||||||
1200 | 80 | 160 | 100 | 160 | ||||||||||
1500 | 30 | 40 | 30 | 30 | ||||||||||
2000 | ||||||||||||||
2500 | ||||||||||||||
3000 | ||||||||||||||
Product Uses |
Current transformers are widely applied in power grids, substations, industrial facilities, mining projects, and infrastructure power distribution systems.

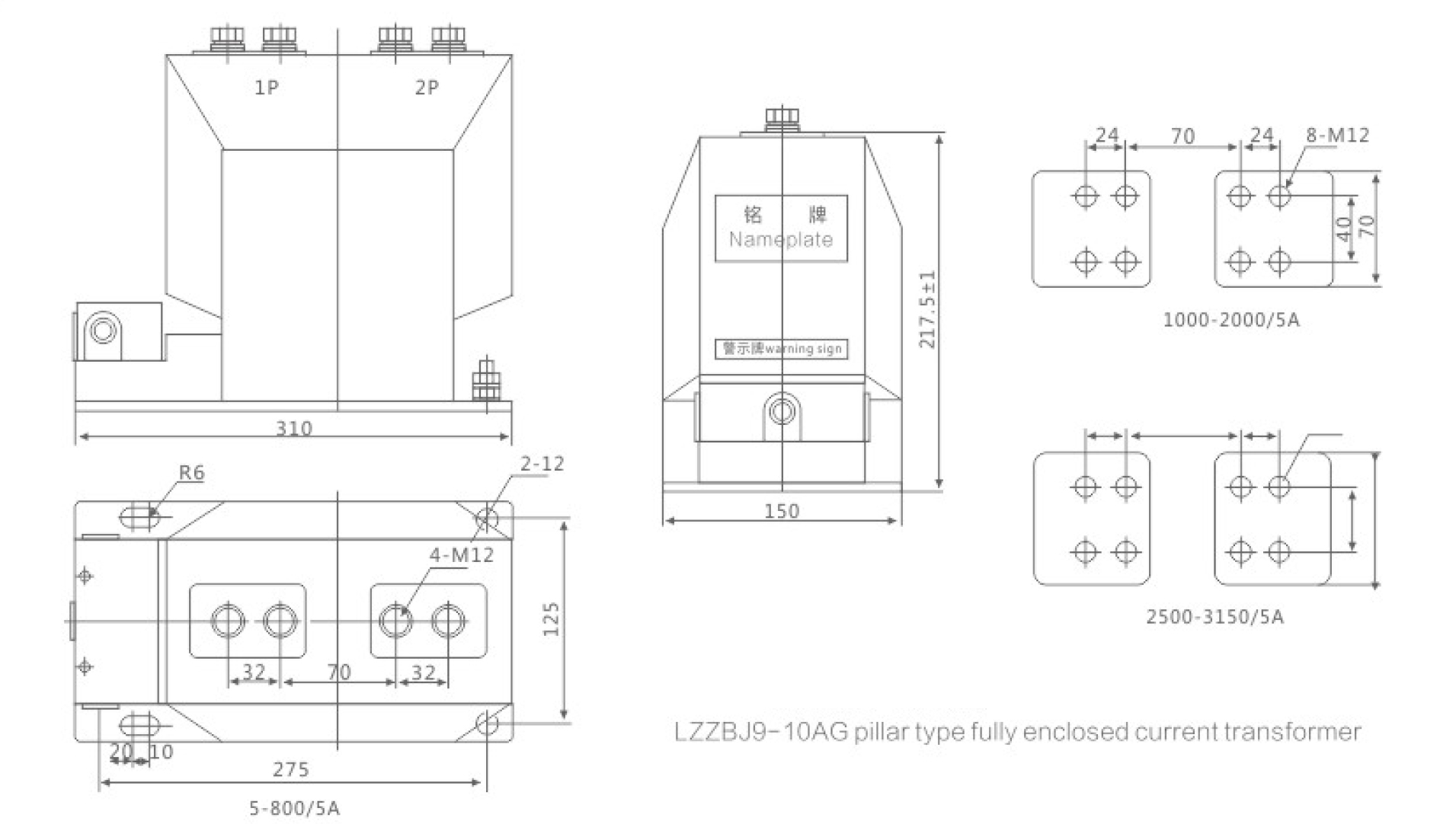

Drawing |
FAQ |
Q: How do you ensure that the product quality meets the standards?
A: Each product export will go through Visual & Dimensional Inspection, Temperature Rise Test, Mechanical Operation Test, Sealing Test, Vibration Test, Shock Test and striker Test.
Q: Why should I choose your company?
A: Superior quality, low price, professional technical team, rich experience, timely delivery time, excellent after-sales service, and good reputation.
Q: How long will it take for me to receive the quotation?
A: For customized products, we will provide a quotation within 48 hours after you provide the required product details, as we need time to calculate costs, but we will provide a quotation as soon as possible.
Q: Our products and packaging can be printed customer's brand?
A: Yes, just need customer's certification of distribution.
Q: We only need some products inner parts/components, could you sell that?
A: Yes, we can.
