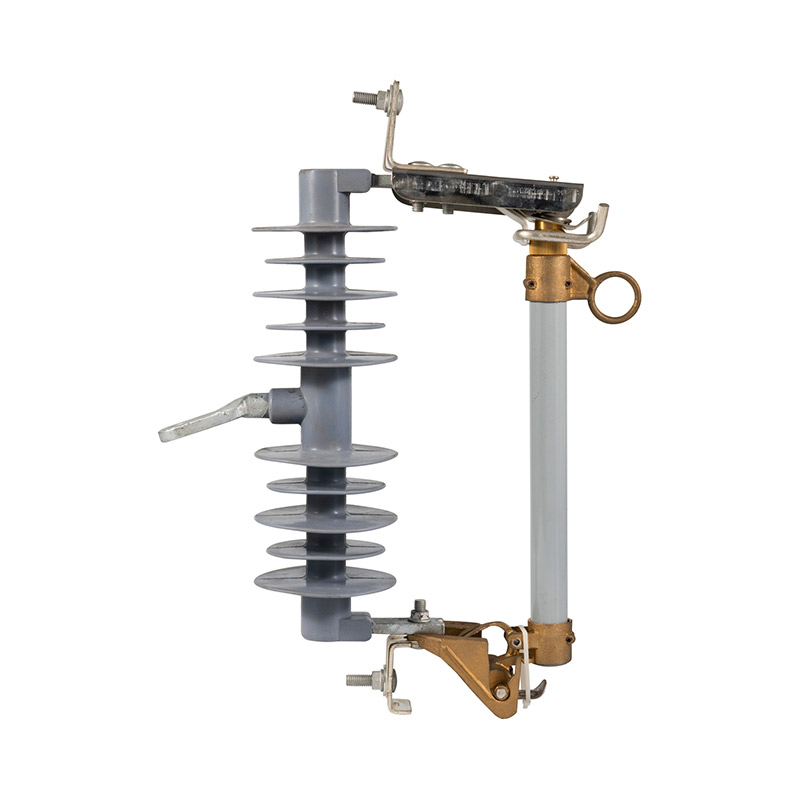

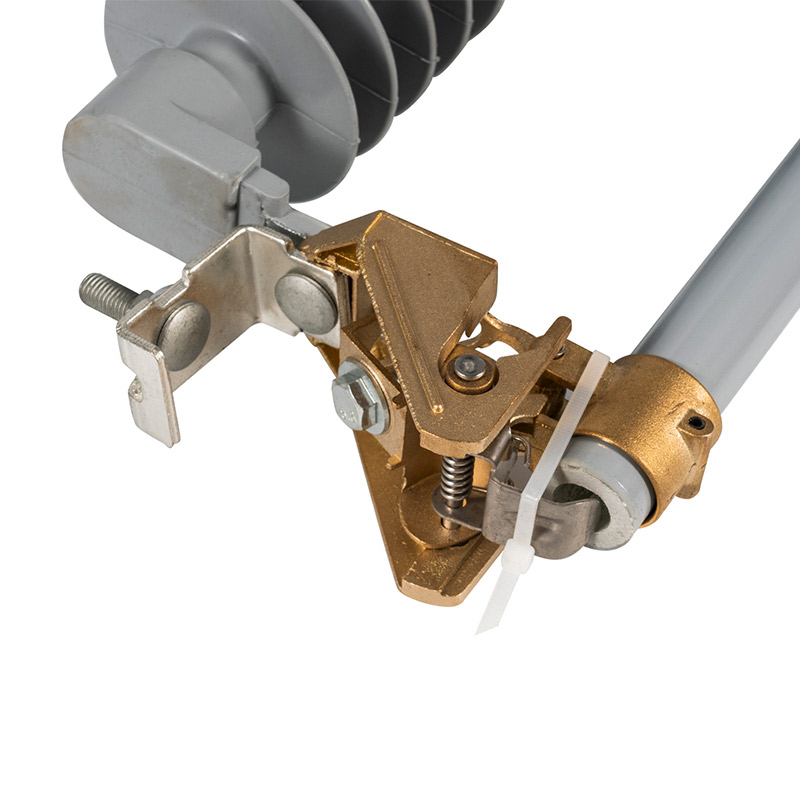

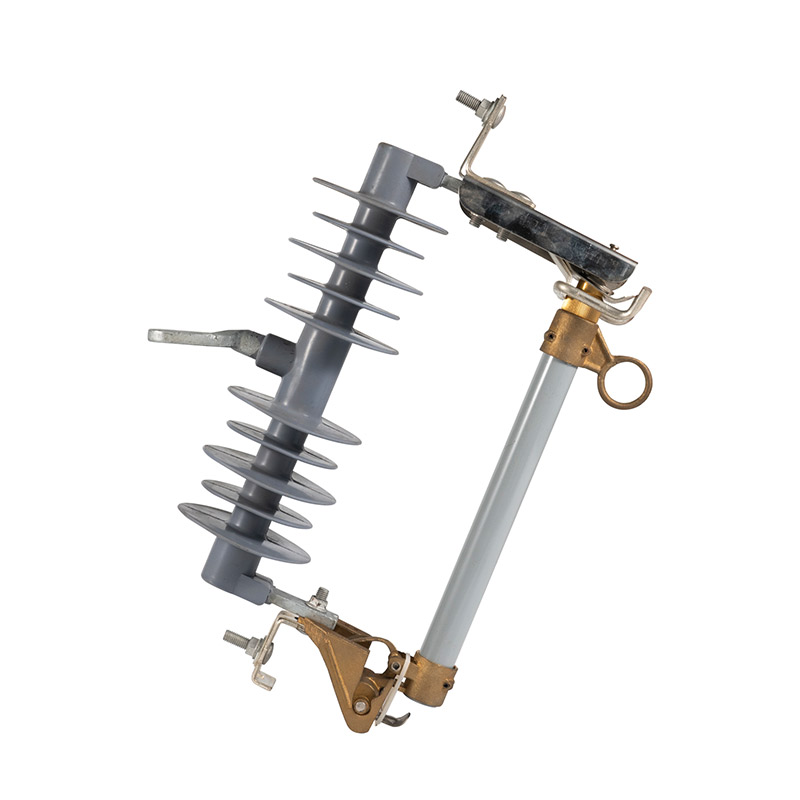

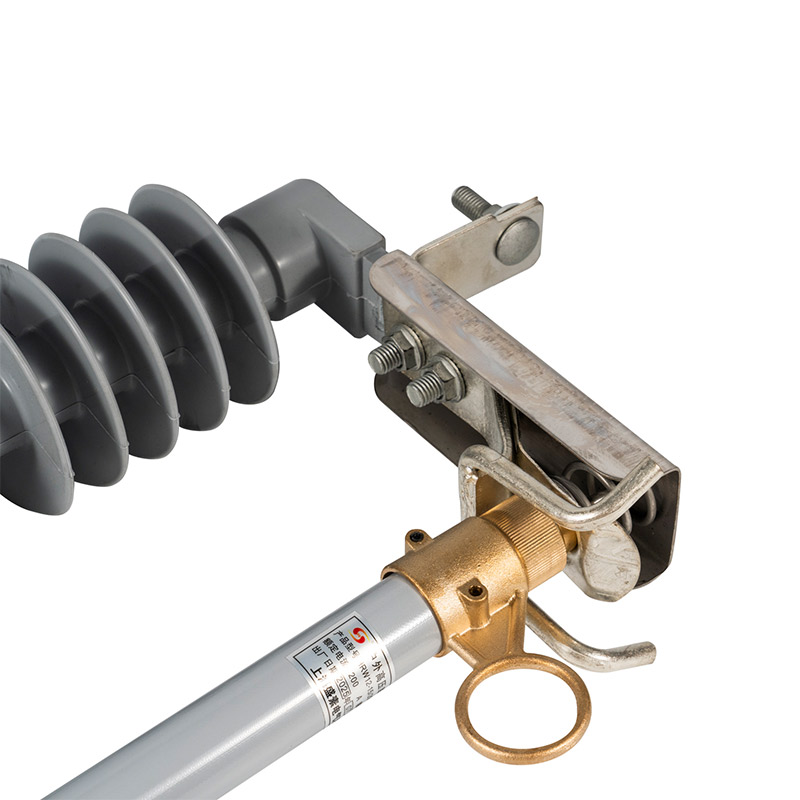

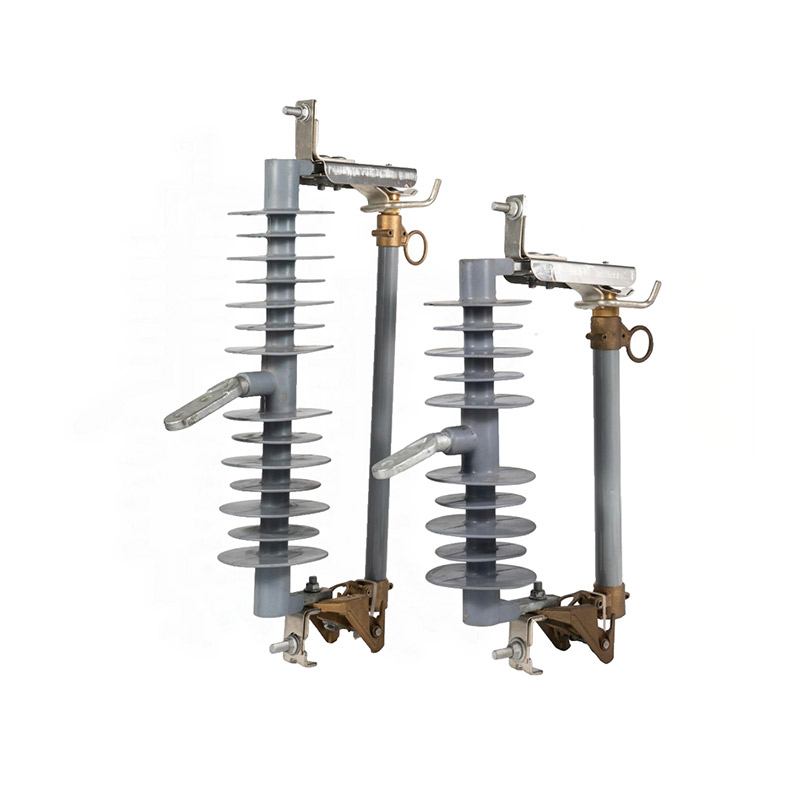

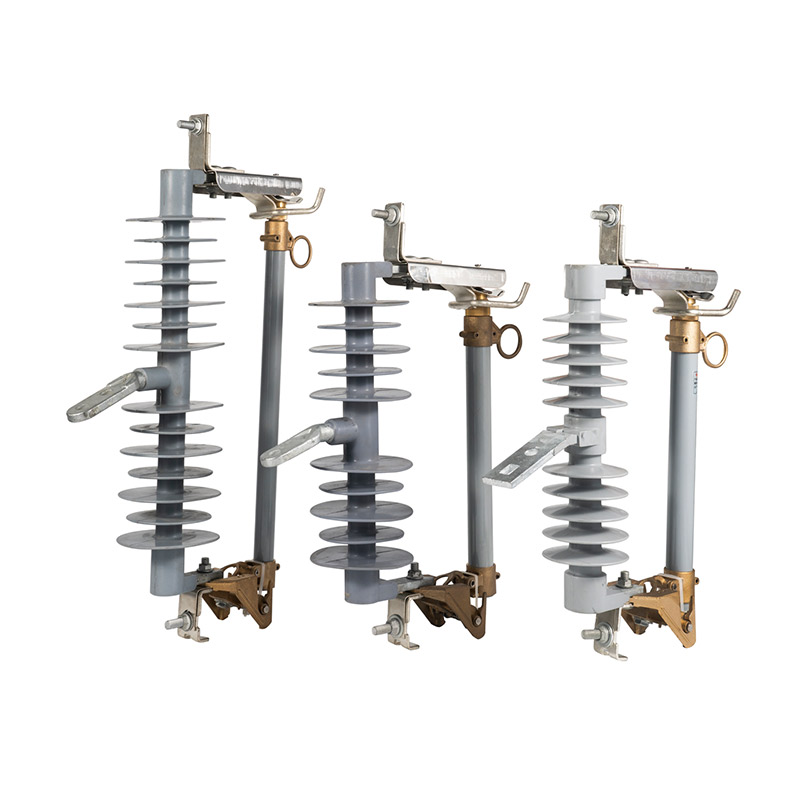

Drop-out fuse cutouts and load-switching fuse cutouts are outdoor high-voltage protection devices. A drop-out fuse assembly consists of an insulator support and a fuse tube. Fixed contacts are mounted on both sides of the insulator support, and moving contacts are installed at both ends of the fuse tube. The interior of the fuse tube is an arc-extinguishing tube, while the exterior is made of phenolic paper tube or epoxy glass cloth. Load-switching fuse cutouts are additionally equipped with extended auxiliary contacts and an arc-extinguishing chamber for load current switching.
Product Advantage |
1. Reliable arc-extinguishing performance with built-in arc-extinguishing tube that generates high pressure to quickly extinguish arcs and isolate faults.
2. Stable structure with firm contact design under normal operation, ensuring safe and reliable power transmission.
3. Flexible operation: the fuse tube can be easily pulled down with an insulated operating rod for maintenance and replacement.
4. Load-switching type supports safe switching on and off of load currents, with enhanced application versatility.
Technical Parameters |
Rated | Rated | Lightning impulse withstand voltage to | Minimum power frequency withstand dry | Minimum creepage |
11-15 | 100/200 | 110 | 42 | 220 |
11-15 | 100/200 | 125 | 50 | 320 |
24-27 | 100/200 | 150 | 65 | 470 |
33-38 | 100/200 | 170 | 70 | 660 |
33-38 | 100/200 | 170 | 70 | 720 |
33-38 | 100/200 | 170 | 70 | 900 |
Product Uses |
These devices are connected to the incoming feeders of distribution transformers or distribution lines. They are mainly used to protect transformers and power lines against short circuits and overloads. Meanwhile, they can perform current switching operations, playing a key role in safe operation, fault isolation and maintenance of power distribution systems.
FAQ |
Q: How do you ensure that the product quality meets the standards?
A: Each product export will go through Visual & Dimensional Inspection, Temperature Rise Test, Mechanical Operation Test, Sealing Test, Vibration Test, Shock Test and striker Test.
Q: Why should I choose your company?
A: Superior quality, low price, professional technical team, rich experience, timely delivery time, excellent after-sales service, and good reputation.
Q: How long will it take for me to receive the quotation?
A: For customized products, we will provide a quotation within 48 hours after you provide the required product details, as we need time to calculate costs, but we will provide a quotation as soon as possible.
Q: Our products and packaging can be printed customer's brand?
A: Yes, just need customer's certification of distribution.
Q: We only need some products inner parts/components, could you sell that?
A: Yes, we can.
