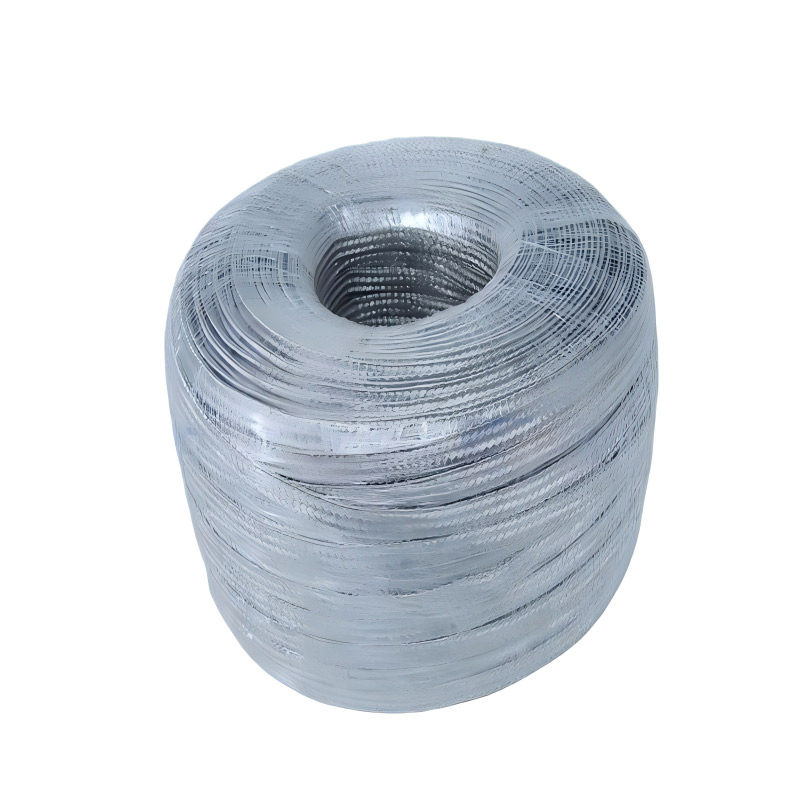

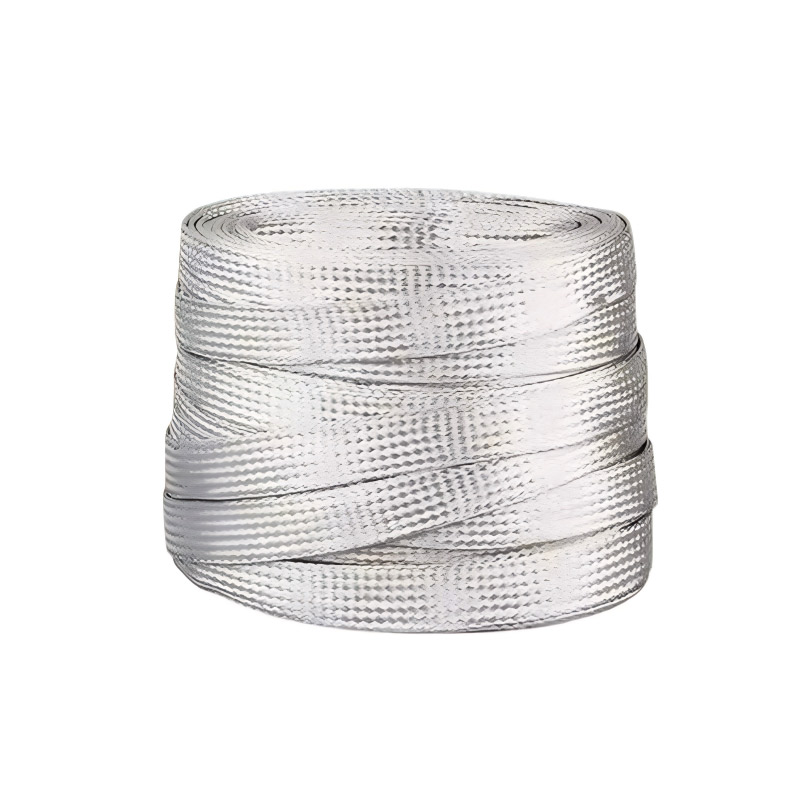

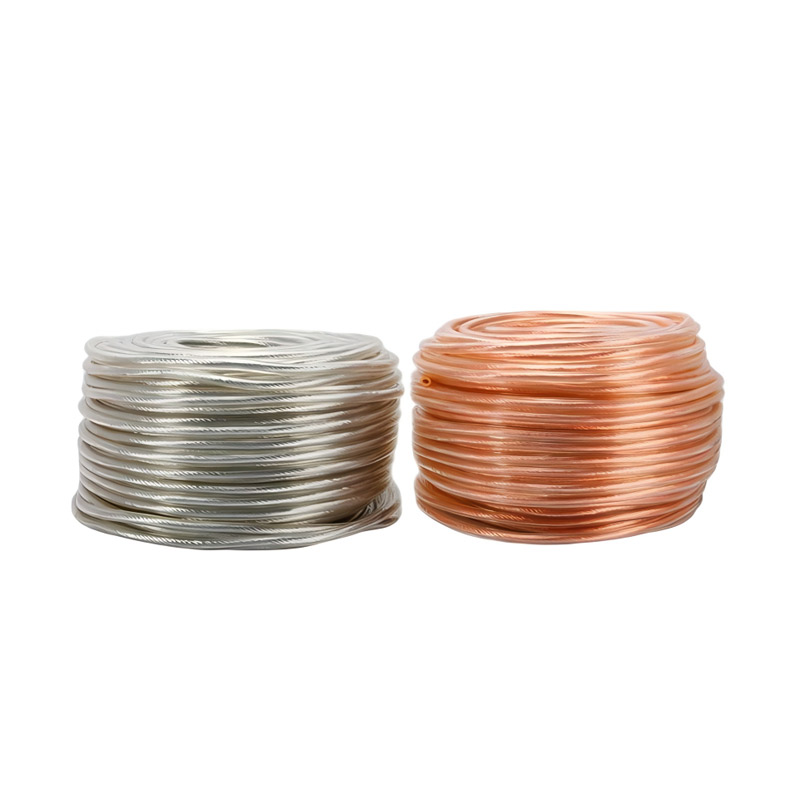

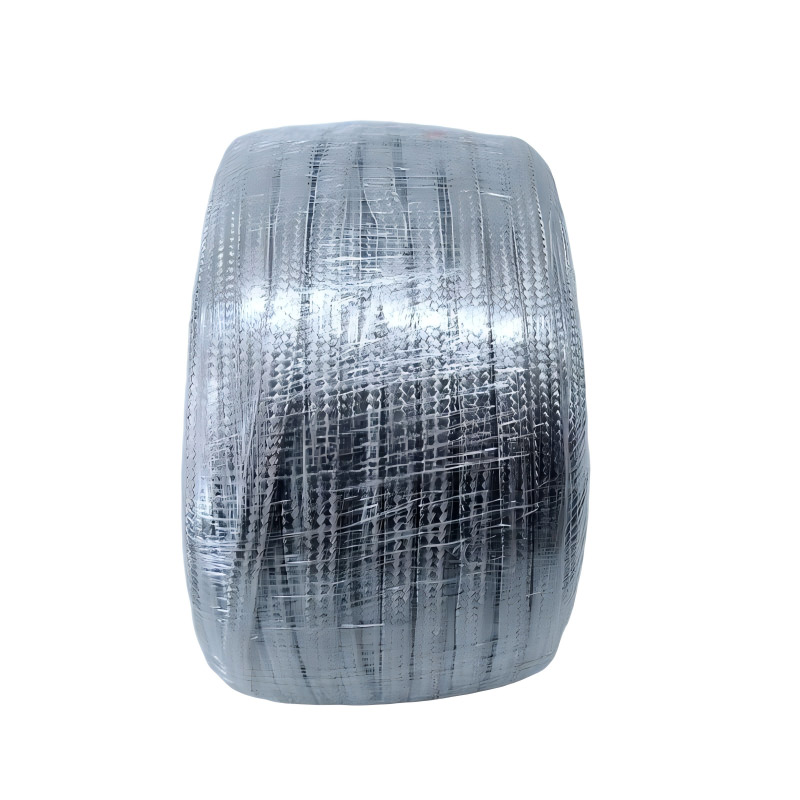

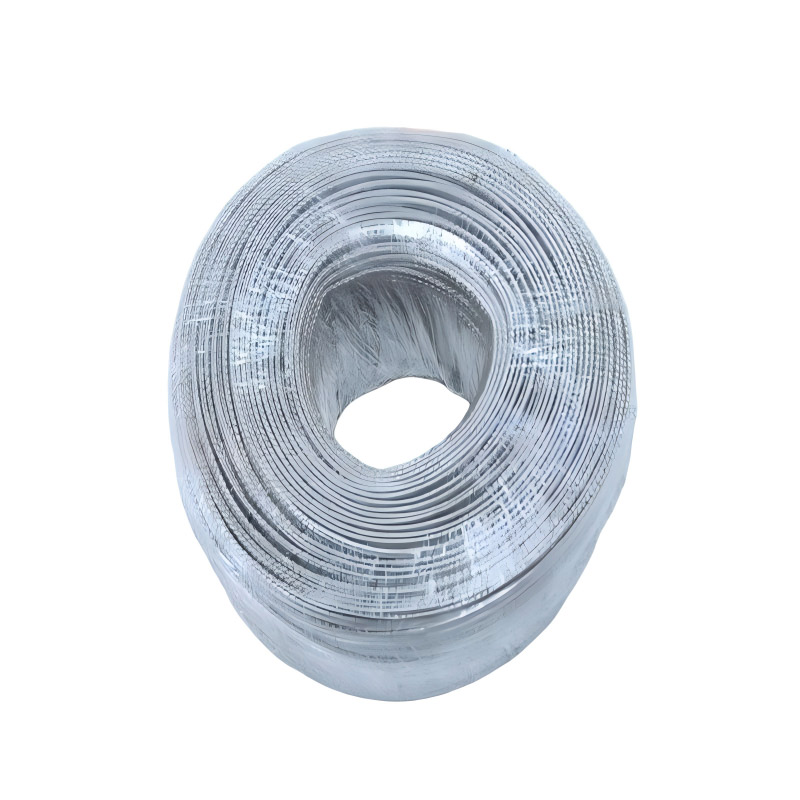

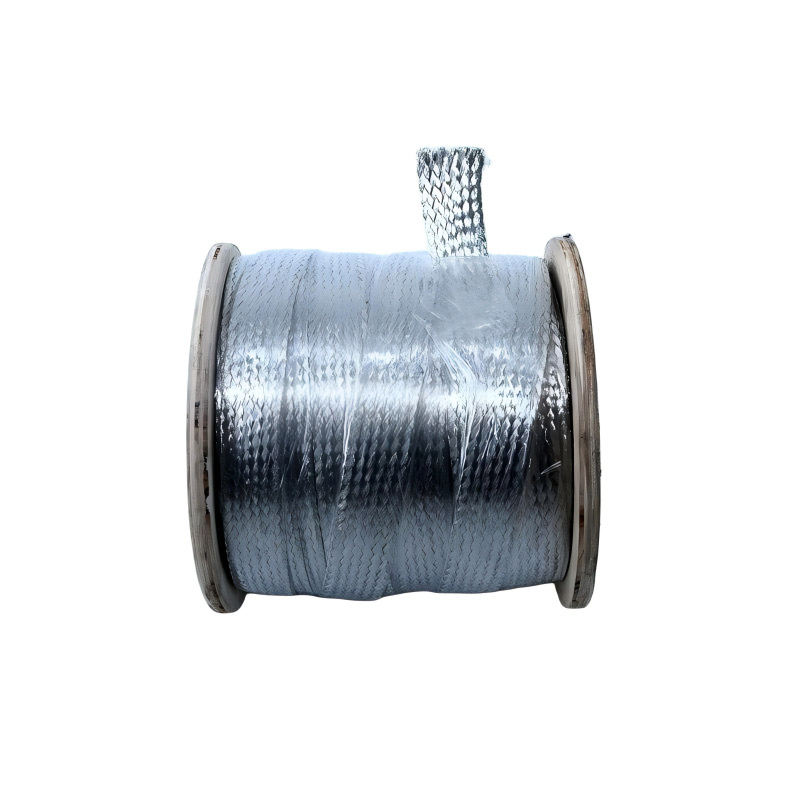

The copper braided wire adopts super-quality round copper wire or tinning soft round copper wire to be braided in multiple-thread one layer or many layers; the DC electrical resistivity (20℃) of copper braided wire is lower than 0.0220Ω·mm²/m, the DC electrical resistivity (20℃) of tinning copper braided wire is lower than 0.234Ω·mm²/m, and the technique standard of this product conforms with JB/T6313.2-1992.
Product Advantage |
1. High Conductivity & Stable Transmission
Our enameled copper clad aluminum wire features excellent electrical conductivity, supporting efficient energy transfer and low power loss. It ensures stable and reliable performance in various electrical working conditions, effectively improving the operation efficiency of electromagnetic components and end products.
2. Lightweight & Cost-Effective
This product combines the performance of copper with the economic advantages of aluminum, providing a more cost-effective solution than pure copper wire. Its relatively light weight helps reduce material consumption and transportation costs, making it ideal for large-scale industrial production.
3. Excellent Solderability
The wire is specially treated to deliver outstanding solderability, enabling firm and reliable welding connections. It works smoothly with automated production processes, avoiding poor welding or surface damage, and is widely adaptable to motors, transformers, speaker coils and voice coils.
Technical Parameters |
Section mm² | Structure | Size mm | direct current | Calculating | |||
Standard | calculating | the width | Thickness | TZ-15 | TZX-15 | ||
4 | 3.39 | 48×4×1/0.15 | 9 | 1.0 | 3.36 | 6.65 | 34 |
4 | 3.82 | 36×6×1/0.15 | 9 | 1.5 | 5.64 | 5.89 | 35 |
6 | 5.09 | 48×6×4/0.15 | 12 | 1.2 | 4.23 | 4.42 | 51 |
10 | 10.18 | 48×12×1/0.15 | 20 | 1.4 | 2.12 | 2.22 | 101 |
10 | 10.18 | 36×16×1/0.15 | 16 | 2.0 | 2.12 | 2.225 | 102 |
16 | 16.96 | 48×20×1/0.15 | 22 | 2.0 | 1.27 | 1.33 | 170 |
16 | 16.54 | 36×25×1/0.15 | 20 | 2.5 | 1.30 | 1.35 | 166 |
20 | 20.36 | 36×32×1/0.15 | 22 | 3.0 | 1.06 | 1.10 | 204 |
25 | 25.44 | 48×30×1/0.15 | 22 | 3.0 | 0.85 | 0.89 | 254 |
25 | 25.44 | 36×40×1/0.15 | 26 | 3.0 | 0.85 | 0.89 | 254 |
35 | 33.93 | 48×20×2/0.15 | 26 | 3.2 | 0.64 | 0.67 | 340 |
35 | 35.62 | 36×56×1/0.15 | 32 | 3.0 | 0.61 | 0.64 | 357 |
50 | 50.89 | 48×20×3/0.15 | 28 | 4.8 | 0.42 | 0.44 | 510 |
50 | 50.89 | 36×40×2/0.15 | 28 | 5.0 | 0.43 | 0.44 | 510 |
70 | 71.25 | 48×28×3/0.15 | 36 | 5.0 | 0.30 | 0.31 | 714 |
70 | 71.25 | 36×56×2/0.15 | 35 | 6.0 | 0.30 | 0.31 | 714 |
75 | 76.33 | 36×40×3/0.15 | 30 | 7.0 | 0.28 | 0.29 | 765 |
95 | 95.00 | 48×28×4/0.15 | 40 | 6.0 | 0.23 | 0.24 | 950 |
120 | 118.74 | 48×28×5/0.15 | 42 | 7.0 | 0.18 | 0.19 | 1187 |
Product Uses |
1. Electrical Machinery: Commonly used in motors, generators and other machinery with movement or vibration. Its flexibility absorbs and distributes forces, avoiding damage to electrical components and ensuring stable operation.
2. Grounding Applications: Serves as a low-resistance path for electrical current flow, effectively diverting current to prevent electrical shocks and other potential electrical hazards, enhancing operational safety.
FAQ |
Q: How do you ensure that the product quality meets the standards?
A: Each product export will go through Visual & Dimensional Inspection, Temperature Rise Test, Mechanical Operation Test, Sealing Test, Vibration Test, Shock Test and striker Test.
Q: Why should I choose your company?
A: Superior quality, low price, professional technical team, rich experience, timely delivery time, excellent after-sales service, and good reputation.
Q: How long will it take for me to receive the quotation?
A: For customized products, we will provide a quotation within 48 hours after you provide the required product details, as we need time to calculate costs, but we will provide a quotation as soon as possible.
Q: Our products and packaging can be printed customer's brand?
A: Yes, just need customer's certification of distribution.
Q: We only need some products inner parts/components, could you sell that?
A:Yes, we can.
