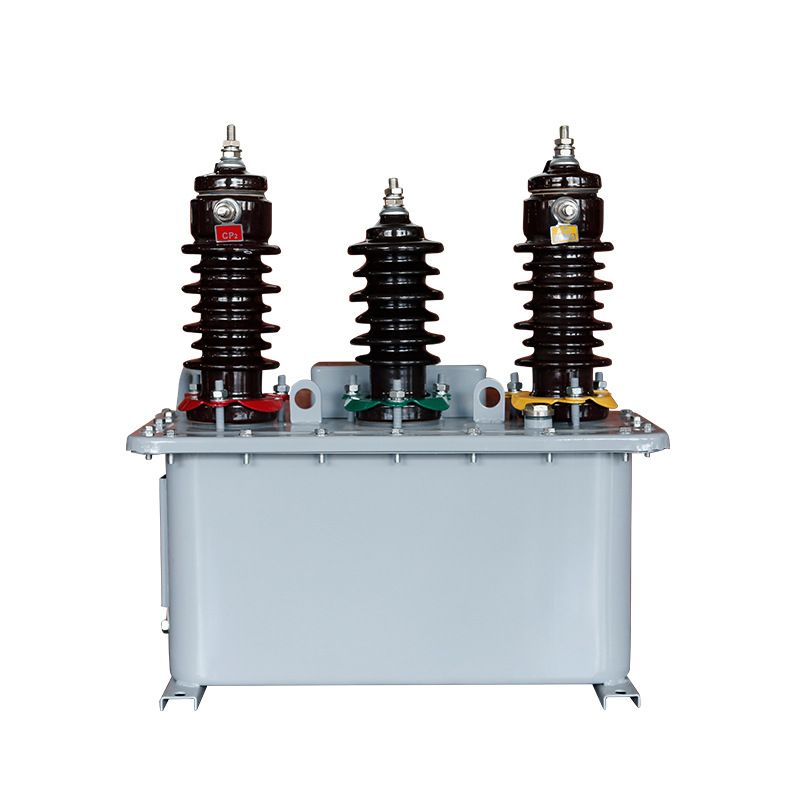

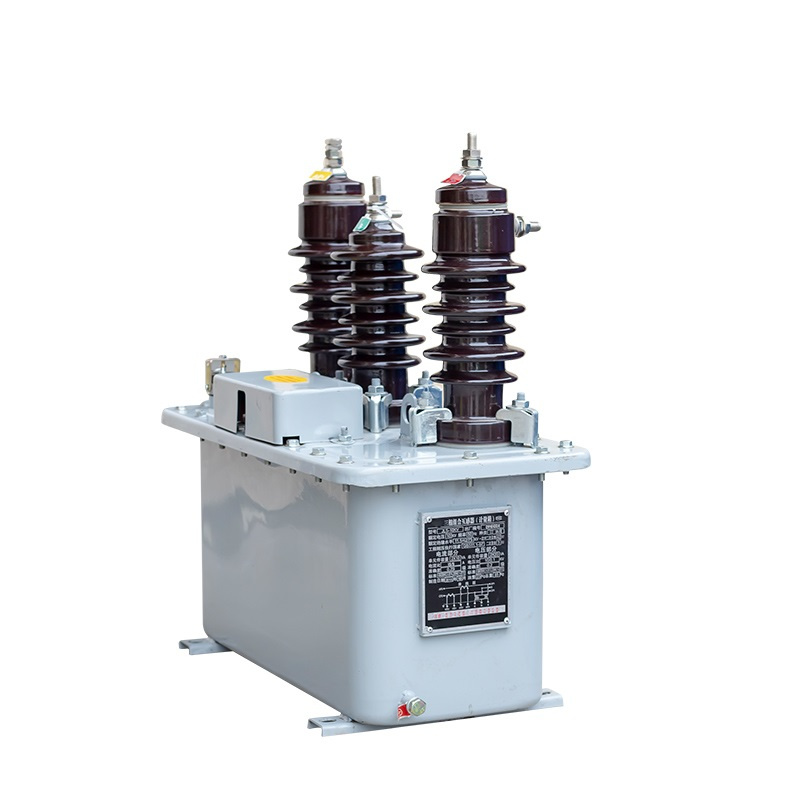

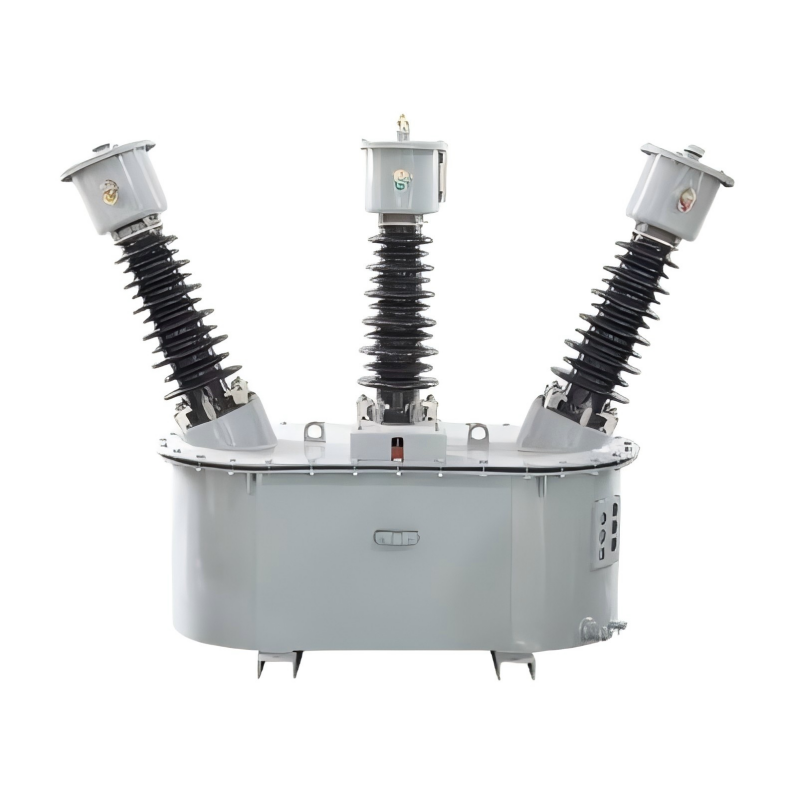

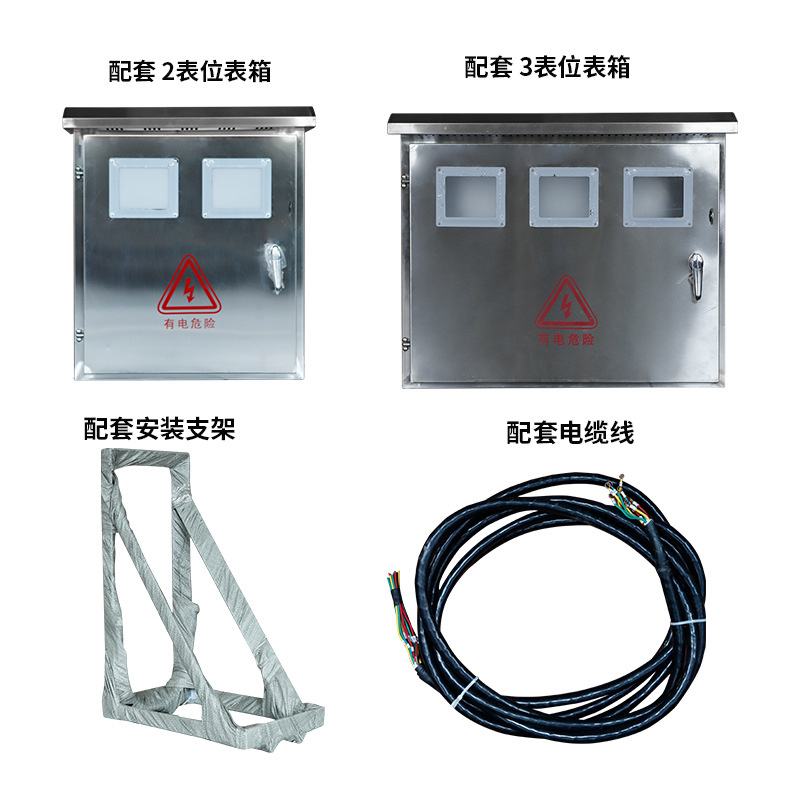

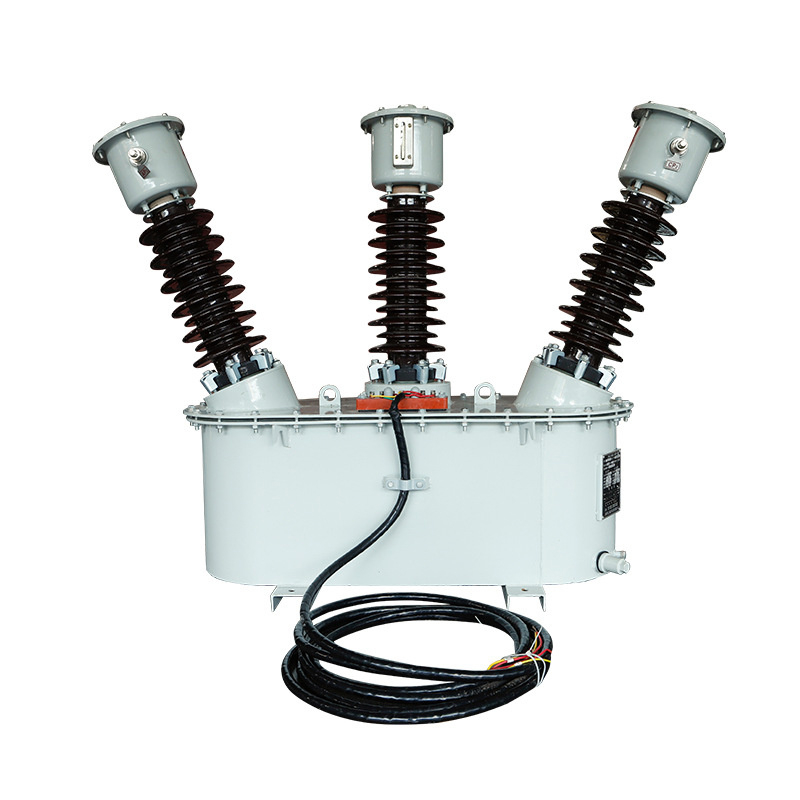

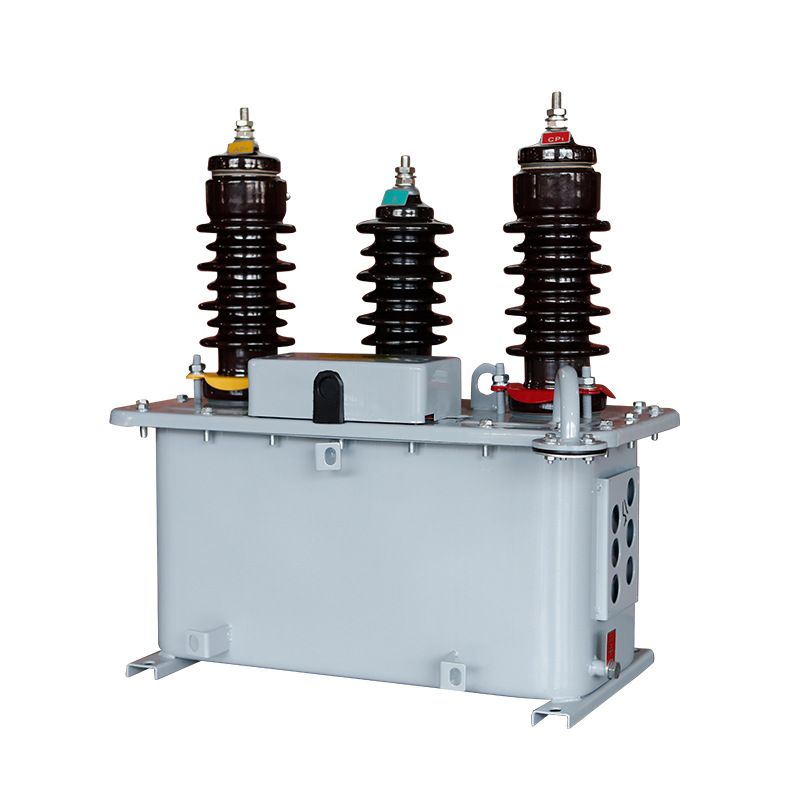

This product is mainly composed of two parts of the combined transformer and the meter box, the combined transformer is composed of two or three single-phase voltage transformer and current transformer, with 25#transformer oil as the insulating medium, the first and second outlet end are installed on the panel witn porcelain bushing. The watt-hour meter box is mounted on the side of the combined transformer and consists of a walt-hour meter and a reactive walt-hour meter. It has the advantages of high measuring accuracy, light weight, convenient installation and anti-theft.
This series of electric energy metering box is suitable for outdoor rated voltage 6, 10, 35kV, rated frequency 50Hz three-phase system network.
Product Advantage |
1. Supports dual current ratios to adapt to varying power loads at different periods.
2. When used with a bidirectional metering box, it enables network metering (separate measurement of power generation and consumption).
3. Features high accuracy, compact size, reliable insulation, excellent heat dissipation, stable operation, and easy wiring.
4. A wide range of models is available to meet customized requirements.
Technical Parameters |
Type | Rated voltage | Rated current | Voltage transformer accuracy | Current transformer accuracy | Rated insulation level | ||
class 0.2 | class 0.5 | class 0.2(S) | class 0.5(S) | ||||
JLS-3 | 3000/100 | 5-300/5 | 20 | 25 | 10 | 10 | 3.6/24/75 |
6000/100 | 5-300/5 | 20 | 25 | 10 | 10 | 7.2/32/75 | |
10000/100 | 5-300/5 | 25 | 25 | 10 | 10 | 12/42/75 | |
JLS-35 | 35000/100 | 5-300/5 | 50 | 50 | 10 | 10 | 40.5/95/185 |
Product Uses |
Ambient air temperature: upper limit +40 °C, lower limit -15 °C
Altitude: < 1000 m (for higher altitudes, the rated insulation level shall be increased)
Vibration: amplitude and frequency not exceeding 8 degrees
Relative air humidity: daily average ≤ 95%, monthly average ≤ 90%
No fire or explosion hazards, severe pollution, chemical corrosion or strong vibration on site.
FAQ |
Q: How do you ensure that the product quality meets the standards?
A: Each product export will go through Visual & Dimensional Inspection, Temperature Rise Test, Mechanical Operation Test, Sealing Test, Vibration Test, Shock Test and striker Test.
Q: Why should I choose your company?
A: Superior quality, low price, professional technical team, rich experience, timely delivery time, excellent after-sales service, and good reputation.
Q: How long will it take for me to receive the quotation?
A: For customized products, we will provide a quotation within 48 hours after you provide the required product details, as we need time to calculate costs, but we will provide a quotation as soon as possible.
Q: Our products and packaging can be printed customer's brand?
A: Yes, just need customer's certification of distribution.
Q: We only need some products inner parts/components, could you sell that?
A: Yes, we can.
