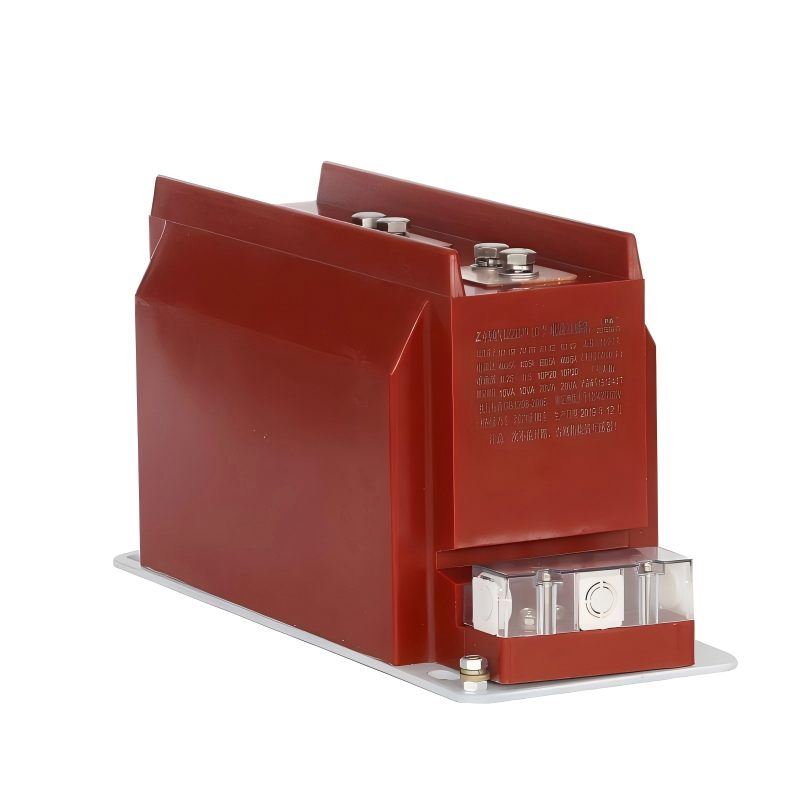

LZZBJ9-12
REACHEE
The transformer is one of import electrical appliances in electric system. It's similar to power transformer and also used to transformer voltage or current in the circuit. However, transforming voltage and current by power transformer aims at transferring electric energy while transforming voltage and current by transformer aims at measuring and monitoring voltage or current in the circuit. Generally, power transformer owns large capacity as well as large change difference of voltage or current. While transformer owns small capacity as well as smaller change difference of voltage or current. In measuring circuit. The transformer that transforms current and supplies electricity for current meter and relay is called current transformer. The transformer that transforms voltage and supplies electricity for voltage meter and relay is called voltage transformer.
Product Advantage |
1.Specialized for circuit voltage and current measurement & monitoring, different from power transformers used for electric energy transmission
2.Small capacity with minor voltage and current transformation range
3.Classified into current transformer and voltage transformer for targeted application
4.Provides power for meters and relays in measuring circuits respectively
Technical Parameters |
Rated primary | Accuracy class | Rated secondary output (VA) | One-second thermal stable | Dynamic stable current(kA) | ||
0.2S | 0.2(0.5) | 10P | ||||
5 | 0.2S/10P10 | 10 | 10 | 15*,20 | 0.5 | 1.25 |
10 | 1 | 2.5 | ||||
15 | 1.5 | 3.75 | ||||
20 | 3 | 7.5 | ||||
25 | 3.75 | 9.3 | ||||
30 | 4.5 | 11.2 | ||||
40 | 6 | 15 | ||||
50 | 7.5 | 18.7 | ||||
75 | 10 | 25 | ||||
100 | 15 | 37.5 | ||||
150 | 22.5 | 56 | ||||
200 | 31.5 | 80 | ||||
300 | 10*,15 | 45 | 112.5 | |||
400 | ||||||
500 | 63 | 130 | ||||
600 | 80 | 110 | ||||
800 | 15*,30 | |||||
1000 | ||||||
1200 | 100 | 160 | ||||
Product Uses |
Current transformers are widely applied in power grids, substations, industrial facilities, mining projects, and infrastructure power distribution systems.
Drawing |
FAQ |
Q: How do you ensure that the product quality meets the standards?
A: Each product export will go through Visual & Dimensional Inspection, Temperature Rise Test, Mechanical Operation Test, Sealing Test, Vibration Test, Shock Test and Strike Test.
Q: Why should I choose your company?
A: Superior quality, low price, professional technical team, rich experience, timely delivery time, excellent after-sales service, and good reputation.
Q: How long will it take for me to receive the quotation?
A: For customized products, we will provide a quotation within 48 hours after you provide the required product details, as we need time to calculate costs, but we will provide a quotation as soon as possible.
Q: Our products and packaging can be printed customer's brand?
A: Yes, just need customer's certification of distribution.
Q: We only need some products inner parts/components, could you sell that?
A: Yes, we can.
